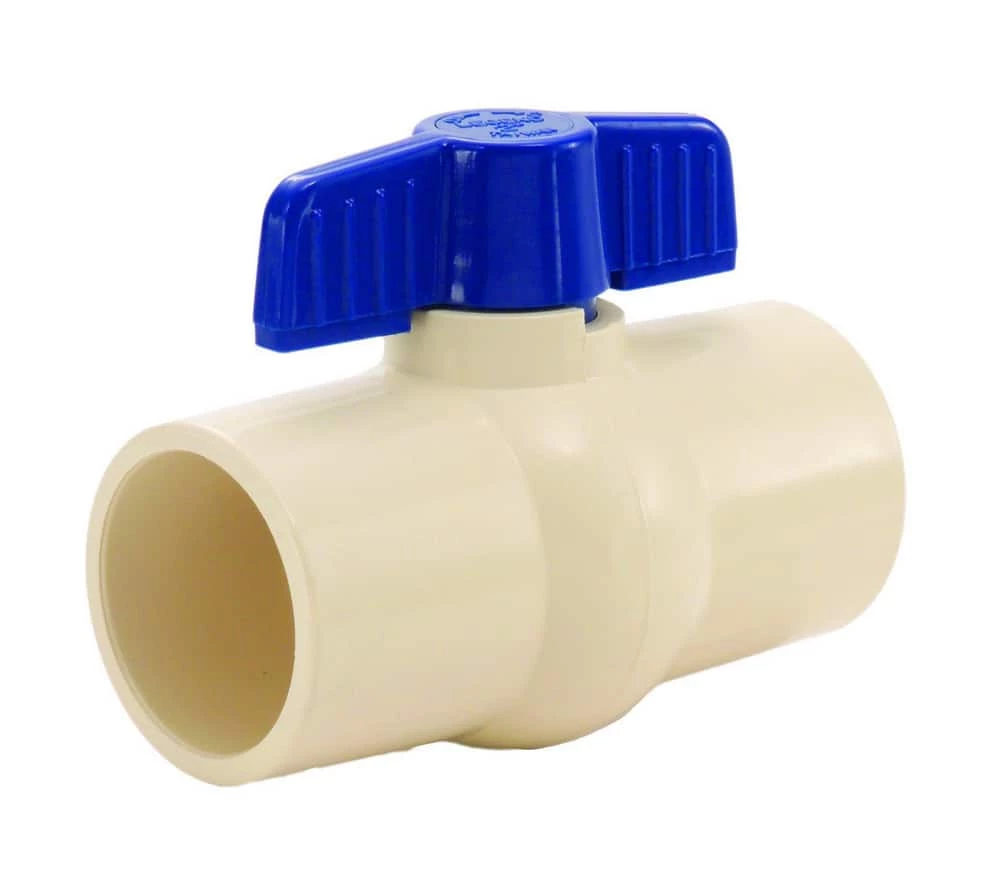

Flash Sale 😀 Legend Valve & Fitting Model S-605 1 in. Plastic Full Port Solvent Weld Ball Valve ✨

Original price was: $13.37.Current price is: $9.36.

SKU: 1444254 Category: Ball Valves Tag: Plastic

Shop with confidence, we guarantee quality.
Risk-Free Shopping with Returns
Quality that lasts, prices that don't.
Safe and Secure Shopping

Constructed of heavy-duty, corrosion-proof, virgin PVC resin

Plumbing sizes 1/2 in. through 1 in. feature a full-port ball design

PTFE seats and EPDM stem o-ring assure maintenance-free operation and maximum service life

Compact-pattern molded-in-place bone-colored body and one-piece ball-stem design, provide exceptional resistance to wear and to tubing stress distortion

Designed and certified for installation onto copper-tube size (CTS) CPVC tubing, potable hot and cold water plumbing and commercial plumbing applications

Not suitable for use with petroleum-based medias or compressed-air service

Solvent-weld end connection types, available in nominal copper-tube sizes 1/2 in. to 2 in.

ANSI Specifications	ANSI 14, ANSI 372, ANSI 61
Valve Body Material	CPVC
Minimum Temperature	73
NSF Certified	Yes
NSF Specifications	NSF 14, NSF 372, NSF 61
Recommended Valve Application	Cold Water, Hot Water
Temperature Range	Up to 180 Deg F
UL Listed	No
Valve Body Style	C Pattern
Material Type	CPVC
Valve Disc Material	Plastic
Valve Operator	Tee Handle
Valve Port Opening	Full Port
Valve Seat Material	PTFE
Valve Size	1 in
Valve Type	Ball Valve
Weight	0.38
Maximum Temperature	180
Material	Plastic
ASME Specifications	ASME B18.6.7M
End Connection 1	Solvent Weld
ASTM Specifications	ASTM D-1784 Class 23447, ASTM D-2846, ASTM F-1970
Application	Tubing
Clean Bagged	No
Collection	Model S-605
Color Finish	Bone
Color Finish Category	Neutrals
End Connection 2	Solvent Weld
Length	3-3/4 in
End Connections	Solvent Weld
FM Approved	No
Handle Material	ABS
Height	3-22/25 in
High Pressure	150
IAPMO Listed	No
ISO Specifications	ISO 9002
Width	2-1/20 in
