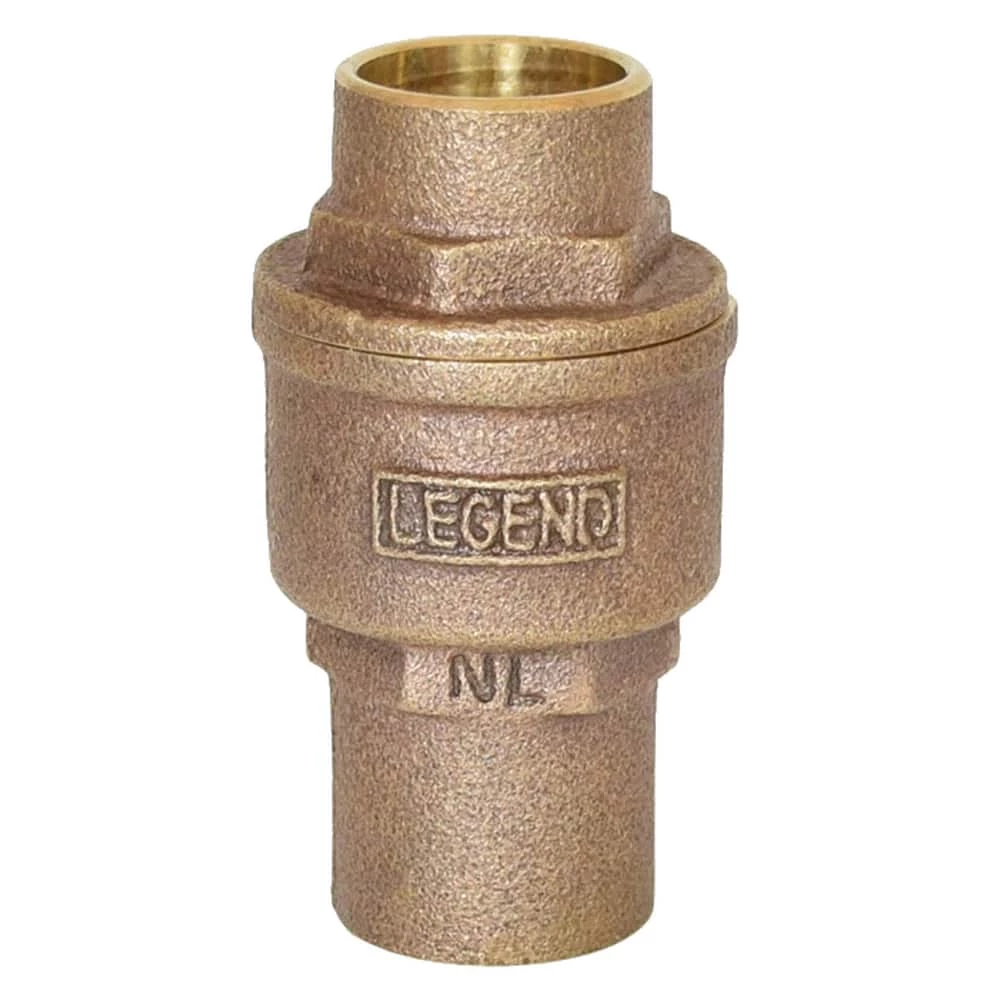

Outlet ❤️ Legend Valve & Fitting S-455 1-1/4 in. Cast Bronze Sweat Spring Check Valve 👏

Original price was: $187.06.Current price is: $98.99.

SKU: 1800884 Category: Check Valves Tag: Cast Bronze

Shop with confidence, we guarantee quality.
Risk-Free Shopping with Returns
Quality that lasts, prices that don't.
Safe and Secure Shopping

In-line spring design

ANSI B16.18

ISO 9002

The 1/2-pound cracking pressure spring rate permits faster low-pressure opening without sacrificing quick closure in backflow scenarios

Bore-guided stem-poppet minimizes over-travel, reducing the chance of premature wear and failure

Can be installed in the vertical or horizontal positions

Not for reciprocating air compressor installations

Available in nominal sizes 1/2 in. to 2 in.

ANSI Specifications	ANSI B16.18
MSS Specifications	MSS SP-80
Weight	1.2
Valve Type	Spring Check Valve
Valve Size	1-1/4 in
Valve Disc Material	Buna-N
Valve Body Style	Inline
UL Listed	No
Recommended Valve Application	Cold Working Pressure
Pressure Class	250#
NSF Certified	No
Maximum Temperature	200
Material	Cast Bronze
Length	3-43/50 in
ASME Specifications	ASME B16.18
Lead Law Compliance Level	Not Approved for Potable Water Applications
Installation Type	Horizontal, Vertical
IAPMO Listed	No
High Pressure	250
FM Approved	No
End Connections	Sweat
End Connection 2	Sweat
End Connection 1	Sweat
Collection	S-455
Clean Bagged	No
ASTM Specifications	ASTM B-124, ASTM B-159, ASTM B-584
Width	2-4/25 in
