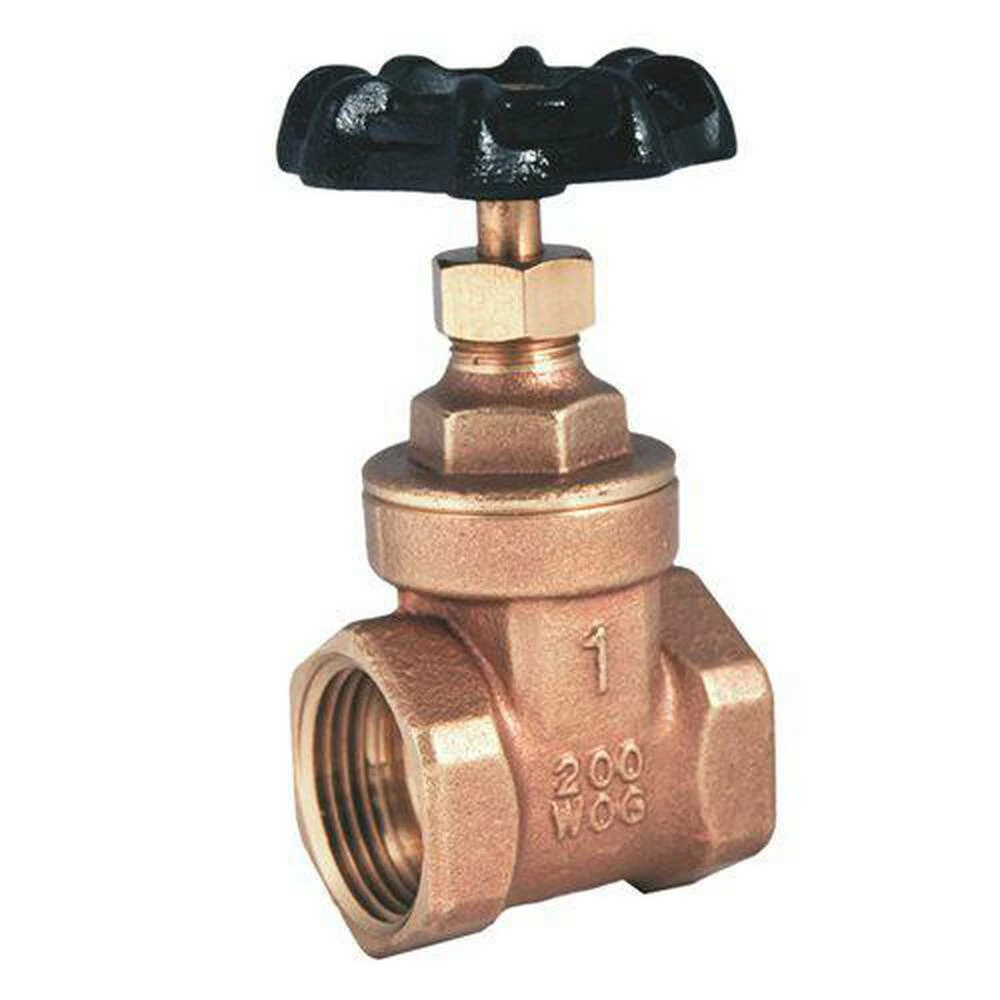

T-401NL No Lead Brass Gate Valve, FNPT x FNPT

ANSI/NSF 61-G

ISO 9002

200 CWP

ANSI Specifications	ANSI 61 Annex G, ANSI B1.20.1
NSF Specifications	NSF 61 Annex G
Valve Type	Gate Valve
Valve Stem	Non-rising
Valve Size	3/4 in
Valve Port Opening	Full Port
Valve Operator	Wheel Handle
Valve Disc Material	Cast Brass
Valve Bonnet Type	Screw-in
Valve Body Material	Cast Brass
UL Listed	No
Recommended Valve Application	Cold Water, Cold Working Pressure, Gas, Oil
Pressure Class	200#
NSF Certified	Yes
ASME Specifications	ASME B1.20.1, ASME B16.18
Material	Brass, Cast Brass, Cast Iron
Length	1-17/20 in
Lead Law Compliant	Yes
High Pressure	200
Height	3-31/100 in
Handle Material	Cast Iron
FM Approved	No
End Connections	FNPT
End Connection 2	FNPT
End Connection 1	FNPT
Collection	T-401NL
ASTM Specifications	ASTM A-48 Class 35, ASTM B-16 UNS C36000, ASTM B-209 1100
Weight	0.68
