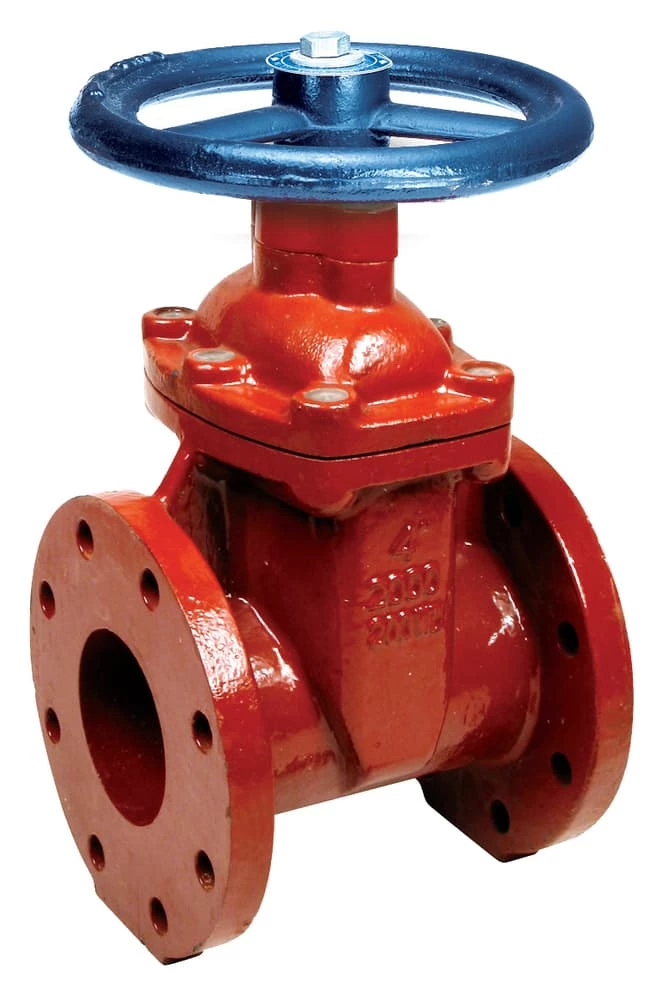

Cheap 😍 Matco-Norca 200WD Series 3 in. Epoxy 🧥 Coated Ductile Iron Full Port Flanged Gate Valve 👏

Original price was: $172.02.Current price is: $97.99.

SKU: 4927373 Categories: AWWA Valves, Resilient Wedge Gate Valves Tag: Ductile Iron, Rubber

Shop with confidence, we guarantee quality.
Risk-Free Shopping with Returns
Quality that lasts, prices that don't.
Safe and Secure Shopping

Non-Rising Stem

Ductile iron gate valves feature higher operating pressures and are lighter weight than cast iron

Valves have fusion bonded epoxy coated housings

Stainless Steel Stem, Bonnet and bolts

Buna-N encapsulated Resilient wedge

Gate Valve-Flanged Ends

250 CWP – 2″ – 12″

200 CWP – 16″

Ductile Iron Body

Meets AWWA C-515 Standard

ANSI Specifications	ANSI B16.1
Pressure Class	125#
Valve Type	Resilient Wedge Gate Valve
Valve Stem	Non-rising
Valve Size	3 in
Valve Seat Material	Buna-N
Valve Port Opening	Full Port
Valve Operator	Handwheel
Valve Disc Material	Ductile Iron
Valve Bonnet Type	Bonded
Valve Body Style	Flanged
Valve Body Material	Ductile Iron
UL Listed	No
Recommended Valve Application	Water
NSF Certified	No
ASTM Specifications	ASTM A-536 65-45-12, ASTM B-584
Maximum Temperature	230
Material Type	Buna-N
Material	Ductile Iron, Rubber
Length	8 in
High Pressure	250
FM Approved	No
End Connections	Flanged
End Connection 2	Flanged
End Connection 1	Flanged
Ductile Iron Pipe Type	Ductile Iron Flanged Pipe
Collection	200WD Series
Coating	Epoxy
AWWA Specifications	AWWA C-515, AWWA C-550
Width	7-87/100 in
